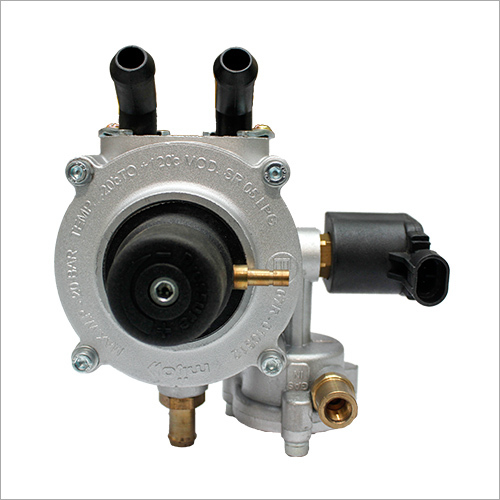

CNG Sequential Reducer(SR05LPG)

CNG Sequential Reducer(SR05LPG)
CNG Sequential Reducer(SR05LPG)
Product Code : 07
Product Description
CNG Sequential Reducer(SR05LPG)
We are providing single stage piston based CNG Sequential Reducer(SR05LPG) that comes with inlet solenoid valve and gas filter. Also, the offered reducer is calibrated for a supply pressure of 1bar (100kPa) and nominal flow rate of 30 Kg/hour. Having the unique design, this reducer is known for providing better mileage performance. Our offered reducer is available in 149x161x124mm dimension and 1.5kg. Apart from this, the provided CNG Sequential Reducer(SR05LPG) consumes 17 W of coil power.

Key Specifications:
  • Material: die cast aluminum body
  • Max. inlet pressure: 30 Bar
  • Outlet pressure: adjustable from 80 to 250 kPa
  • Solenoid voltage: 12 V DC
  • Coil power consumption: 17W
  • Inlet connection: ø6 mm pipe, M10x1
  • Outlet connection: ø10 mm
  • Engine Power: Up To 240 HP
